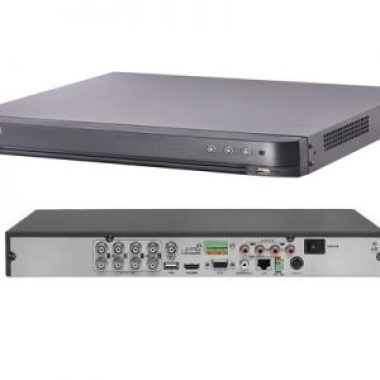

دستگاه ضبط تصاویر DVR هایک ویژن 7216HQHI-K1-Eco
تعداد کانال: 16 کانال (به علاوه پشتیبانی از 2 عدد دوربین IP)
کیفیت ضبط: پشتیبانی از دوربین ها تا 3 مگاپیکسل
تعداد و ظرفیت هارد: پشتیبانی از یک عدد هارد با ظرفیت 6 ترابایت
خروجی تصویر: VGA ،HDMI ،LAN ،CVBS
فرمت ذخیره سازی: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
ساپورت میکروفن: پشتیبانی از یک عدد میکروفن
خروجی اسپیکر: دارد
Recording
Encoding Resolution
Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video Bit Rate
32 Kbps to 6 Mbps
Video Compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Dual Stream
Support
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bit Rate
64 Kbps
Video And Audio
Audio Input
1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Synchronous Playback
16-ch
IP Video Input
8-ch (up to 24-ch);Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
HDTVI Input
4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30 *: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2 of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.
HDCVI Input
5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS Input
PAL/NTSC
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Analog Video Input
16-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
AHD Input
4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS Output
N/A
HDMI/VGA Output
HDMI:1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI and VGA simultaneous output
VGA:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Network
Network Protocols
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote Connections
128
Network Interface
1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
Capacity
Up to 10 TB capacity for each disk
Serial Interface
N/A
USB Interface
2 × USB 2.0
Alarm In/Out
N/A
SATA
1 SATA interface
General
Consumption(Without HDD)
≤ 13 W
Working Humidity
10% to 90%
Power Supply
12 VDC
Working Temperature
-10 °C to +55 °C (+14 °F to +131 °F)
Dimensions(W × D × H)
265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
Weights (Without HDD)
≤ 1.7 kg (3.7 lb)
