ریال19,410,000

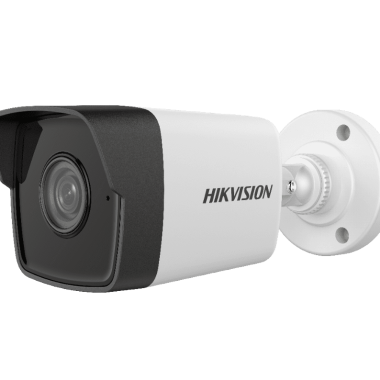

دوربین دیواری
تحت شبکه ( اتصال از طریق کابل شبکه )
2 مگاپیکسل HD 1080P
رزولوشن 1080*1920
فرمت ضبط +H265
لنز 2.8 ( زاویه دید 106 درجه )
قدرت دید در شب 30 متر
دارای میکروفون
بدنه پلاستیک
استاندارد IP67
Camera
Image Sensor
1/2.8″ Progressive Scan CMOS
Min. Illumination
Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Day &Night
IR cut filter
Wide Dynamic Range
Digital WDR
Lens
Lens
Fixed lens, 2.8/4 mm
Auto-Iris
No
Aperture
F2.0
Focus
No
FOV
2.8mm: Horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135° ;4 mm: Horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°
Lens Mount
M12
Illuminator
IR Range
Up to 30 m
Wavelength
850 nm
Video
Max. Resolution
1920 × 1080
Video Compression
Main stream: H.265+/H.265/H.264+/H.264;Sub-stream: H.265/H.264/MJPEG
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Video Bit Rate
32 Kbps to 8 Mbps
Smart Feature-Set
Region Of Interest
1 fixed region for main stream and sub-stream
Image Enhancement
BLC, 3D DNR
Image Setting
Rotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
Day/Night Switch
Day/Night/Auto/Schedule
Main Stream Max. Frame Rate
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720);60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream Max. Frame Rate
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
API
ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users,3 levels: Administrator, Operator, and User
Client
iVMS-4200, Hik-Connect, iVMS-5200
Alarm Trigger
Motion detection, video tampering alarm, illegal login
Web Browser
IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Interface
Communication Interface
1 RJ45 self-adaptive Ethernet port
General
Firmware Version
5.5.83
General Function
One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Startup And Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 3)
Material
Front cover: metal, back cover : plastic
Dimensions
Camera: 67.8 × 66.2 × 177.6 mm (2.7″ × 2.6″ × 7″) ;With package: 216 × 121 × 118 mm (8.5″ × 4.8″ × 4.6″)
Camera: Approx. 270 g (0.6 lb.) ;With package: Approx. 470 g (1 lb.)
Power Consumption And Current
12 VDC: 0.4 A, max. 5 W
PoE: (802.3af，36 V to 57 V), 0.2 A to 0.1 A, max. 6.5 W
Interface Protection
Ingress protection: IP66 (IEC 60529-2013)
